Victron BMV-712 Smart Battery Monitor – Black
Victron BMV-712 Smart Battery Monitor – Black
Couldn't load pickup availability

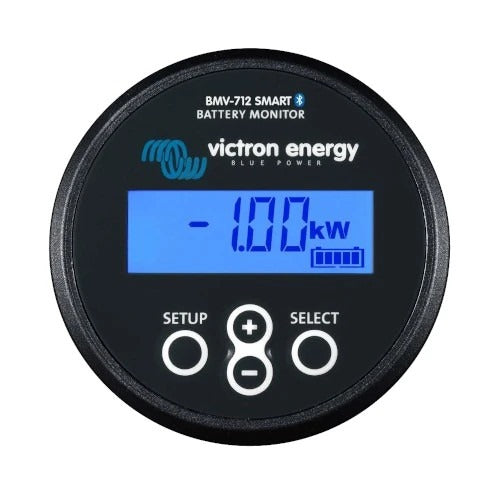

The Victron BMV-712 Smart Battery Monitor BLACK is a high-precision battery monitoring system with built-in Bluetooth, designed for battery banks with voltages between 6.5 V and 70 V.
It comes with a 500 A/50 mV quick-connect shunt and a 10 m RJ12 cable. The device stores historical data, such as deepest discharge, average discharge, and cycle counts, and can raise alarms or trigger a relay when thresholds are met.

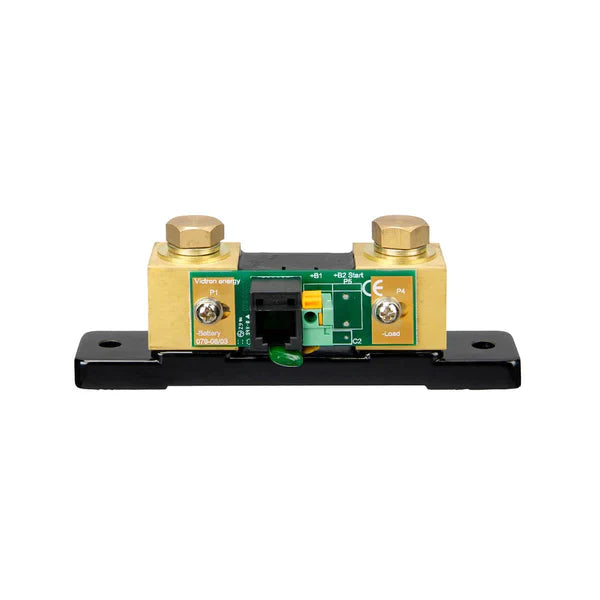

All electrical connections are made to a quick-connect PCB on the shunt, while the shunt itself uses standard bolt mounts. The monitor is compact and versatile, with a removable bezel allowing either round or square front displays.
Key Features:
Comprehensive Monitoring:
- Keep track of crucial battery parameters, including state of charge, temperature, and voltage.
- Monitor incoming and outgoing loads, providing real-time insights into your electrical system's performance.
VictronConnect App:
- Utilize the VictronConnect app, available for download on Android and iOS devices, to access advanced monitoring and customization features.
- View all important data on a single screen, customize settings, and access historical data effortlessly.
- Enjoy the flexibility to update the software whenever new features are introduced.
Bluetooth Connectivity:
Built-in Bluetooth functionality enables wireless communication with the VictronConnect app, ensuring convenient and cable-free monitoring.
Temperature Sensor Compatibility:
Connect the BMV-712 to your leisure batteries using the separately available temperature sensor (not included). This enhances accuracy by incorporating temperature data into the monitoring process.
Easy Installation:
Electrical connections are simplified through the quick-connect PCB on the shunt, streamlining the installation process. The shunt, which is included, connects to the monitor using a standard RJ12 telephone cable.
Included Components:
- Comes with a 500A shunt to facilitate accurate current measurement.
- A 10m RJ12 cable is included for connecting the shunt to the monitor.
- Front bezel included for both square and round display appearances.
- Securing ring provided for rear mounting, along with screws for front mounting.
Versatile Mounting Options:
Front bezel and securing ring allow for flexible mounting options, catering to both square and round display preferences.
Dimensions:
- Front (bezel) size: 68.7 × 68.7 mm
- Body diameter: 52 mm
- Depth (body): 30.6 mm
- Shunt dimensions: 120 mm × 55 mm × 25.8 mm (length × width × thickness)
- Shunt mounting bolts: M10, spaced 25 mm apart
